BIM Guide

BIM stands for Building Information Modeling and Axdea is a BIM-based software. With Axdea, you can:-

  • 3D modeling with material
  • Import/Export IFC file
  • IFC explorer
  • Integration with BIM server
  • Spreadsheet functionality

3D Modeling with Material
Axdea is a 3D CAD modeling software with the ability to attach material to its object/model. Axdea provides a material card which contains a lot of information about the material.
(See how to build 3D models with Axdea)

Import/Export IFC File
IFC stands for Industry Foundation Classes. Axdea utilises IFC format to exchange data between BIM applications.

IFC Explorer
Axdea has been equipped with the functionality to explore IFC file. Activate Architectural Workbench. At the menu, go to Architure > Utilities > IFC Explorer.
IFC Explorer

Integration with BIM Server

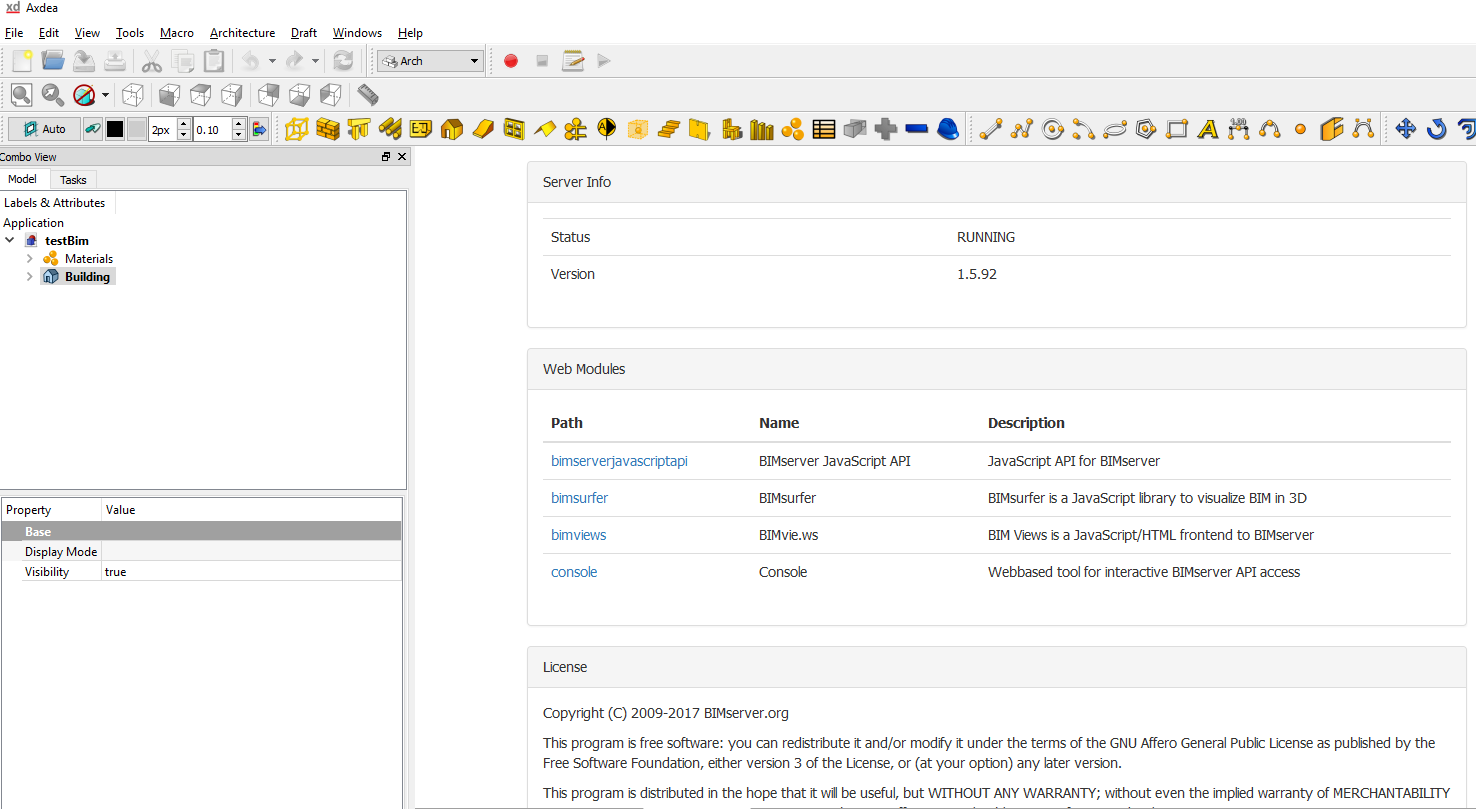

Axdea has the capability to upload your building model to BIM Server. Activate Architectural Workbench. At the menu, go to Architure > Utilities > BIM Server.
BIM Server

Spreadsheet Functionality
Axdea provides Spreadsheet to enable users to extract information from the 3D models.
BIM Server
